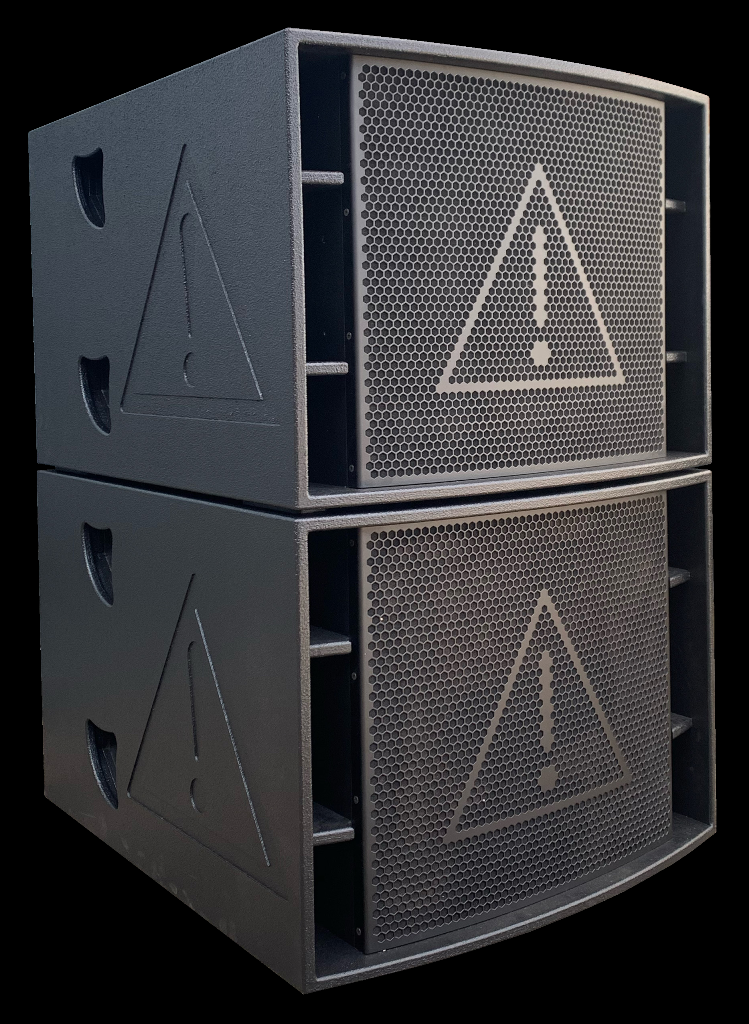

UNIQUE TECHNOLOGIES in PERFECT HARMONY delivering EXCEPTIONAL PERFORMANCE
3.5KW RMS / 7KW peak power amplifier.
Our own unique overbuilt 3.5KW RMS / 7KW peak class H bipolar heavyweight power amplifier - for effortless delivery of the high continuous current demands of many modern music basslines - this is a point of performance failure in many of today's lightweight amplifiers.
Pressure Charged Driver
Unique 21 inch "Pressure Charged Driver" delivering the holy grail of very high efficiency, low power compression and high power handling.
"Symitiza" circuit
Our own unique "Symitiza" circuit that applies offset correction to asymmetrical waveforms to keep the driver operating as symmetrically as possible within its Xmax zone. This reduces distortion and increases efficiency and reliability at extreme output levels.
heat managment
Our own unique analogue computer to manage voice coil heat allowing the speaker to safely run even louder as a result.
Signal management
Our own unique analogue signal processing and dynamic management system that helps the unit to make the most of the music, producing a really heavyweight, dynamic and accurate sound that is a pleasure to listen to regardless of how hard it is being driven.
Custom limiter
A user configurable limiter threshold so that the maximum output can be set and limited to suit the application.
| Dimensions: | 800w x 600h x 950d + skids and castors |
| Weight: | 110kg approx |
| Mounting Hardware: | Skid recesses on top / 35mm pole socket in top |
| Frequency Response: | 30hz to 200hz. Can run from full range signal (inbuilt low pass filter) |
| Typical Peak SPL @1m: | Ground stacked single UNIBASS up to approx 145db, a block of four UNIBASS up to approx 155db |
| Power Requirement: | 230v ac, typically between 2 to 10 amps depending on music & level |
| Audio Connections: | Signal via XLR in & link out |
| Power Connections: | 20A Powercon connectors in & link out |
| Controls on Rear | Input gain, power switch, limit threshold & low pass filter frequency |
| Amplifier: | Unique 3.5KW RMS / 7KW peak heavyweight bipolar class H amp |
| Speaker Driver: | 21 inch driver with pressure charger |
| Electronics: |
Analogue signal processing, including low pass filter & limiters. Analogue computer to monitor voice coil heat. |
| Display on Rear: | Green signal present indicator Red high level signal indicator Red power on indicator |
